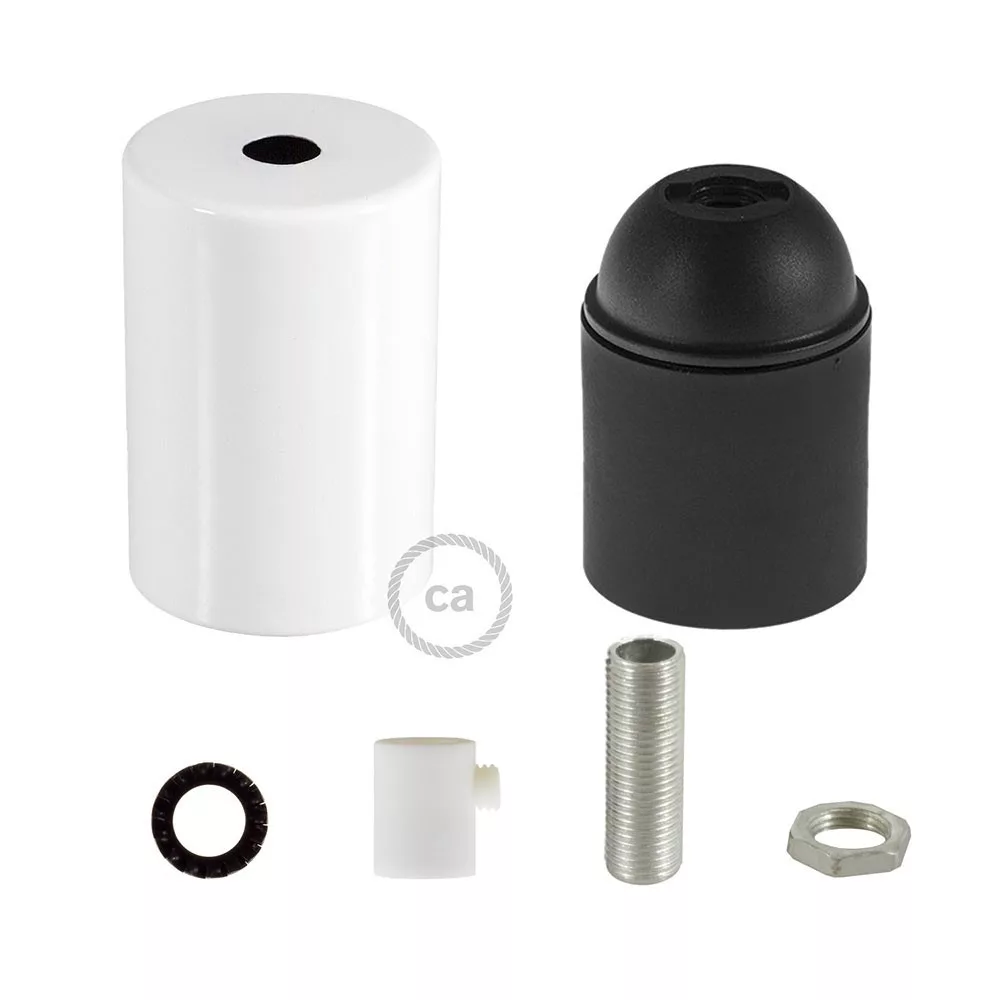

Technical data for cylindrical socket set.
1 - E26 socket made of thermoplastic material with IMQ ENEC certification, manufactured in Italy
1 - Metal socket cover
Diameter: 1 - 11/16 inches (42 mm)
Height: 2 - 7/16 inches (62 mm)
Upper hole diameter: 3/8 inch (10 mm)
Material: metal.
Technical data Cylindrical tensile strength cable clamp
Cap dimensions: diameter 1/2 inch (13 mm) - height 5/8 inch (17 mm)
Cap material: metal.
Threaded tube dimensions: diameter and height 3/8 inch (10 mm)
Threaded tube material: metal.
Technical data Tapered tensile strength cable clamp
Height: 1 - 11/16 inches (43 mm)
Diameter: 11/32 inches (14.8 mm)
UL-listás: E190302
Please note that the internal bulb connector has a built-in locking safety device that prevents it from being unscrewed after installation. (This is for protection against electric shock.)
We deliver all our lamp sockets.
not fully assembled and screwed together.
so that the built-in safety locking mechanism is not "locked" when you receive the product.
If the safety device locks for any reason, you can open this safety system with a small screwdriver located on the side of the socket. Please visit our tutorial page, where you will find videos on how to open light bulb sockets. If you try to open the socket, the power supply will be interrupted.
to the socket before inserting anything into the socket!
