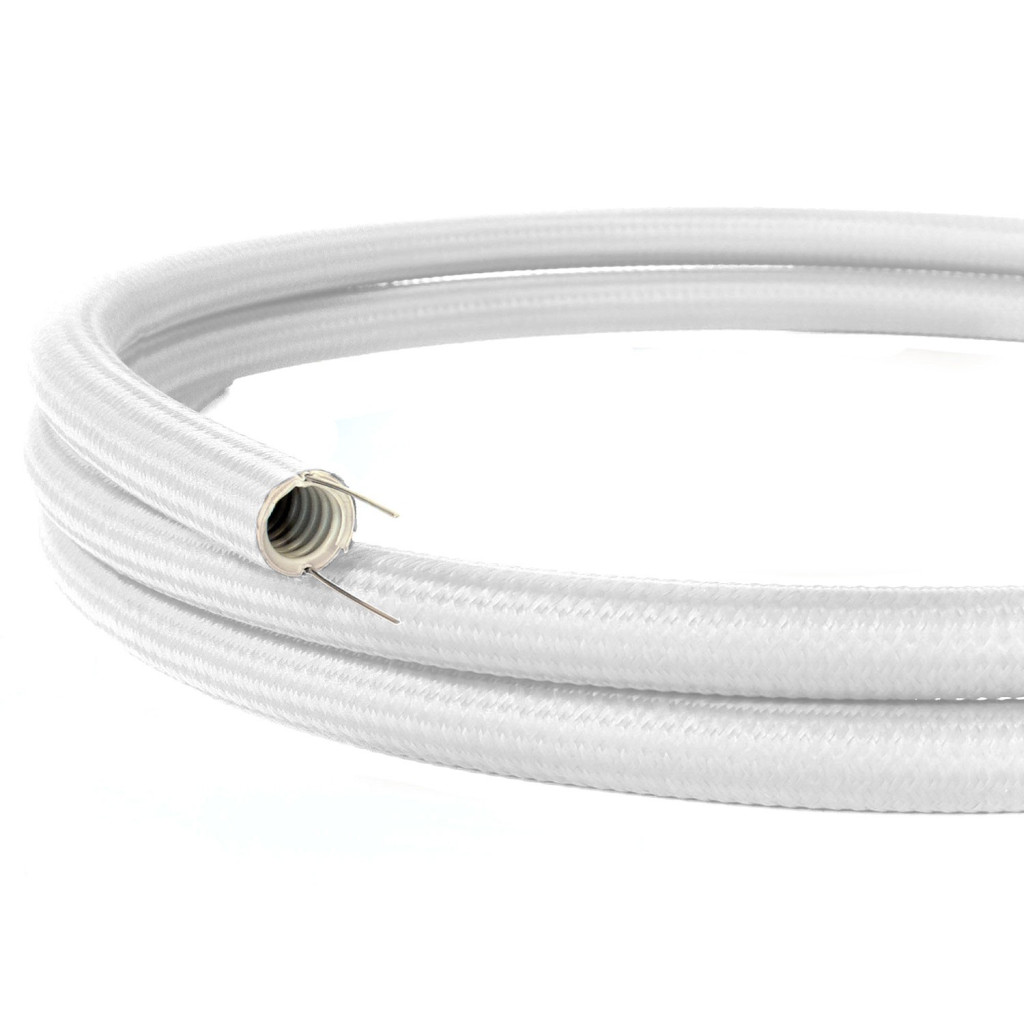

Creative-Tube flexible cable, Rayon White RM01 fabric cover, diameter 20 mm

8.59 €

Creative-Tube flexible cable, Rayon White RM01 fabric cover, diameter 20 mm

Name: Creative-Tube flexible cable, Rayon White RM01 fabric cover, diameter 20 mm
Brand: Creative-Cables
SKU: CREATIVECABLES-NG20RM01
Price: 8.59 EUR
Availability: InStock

Classification number: 3321
Break resistance: >750N at 5 cm at 20°C
Impact resistance: (-15 °C) after impact with a 2 kg hammer

Operating temperature: between -5 °C and +60 °C

Flame spread resistance: self-extinguishing VO
Dielectric strength: < 2000 V at 50 Hz
Insulation resistance: >100 mega ohms

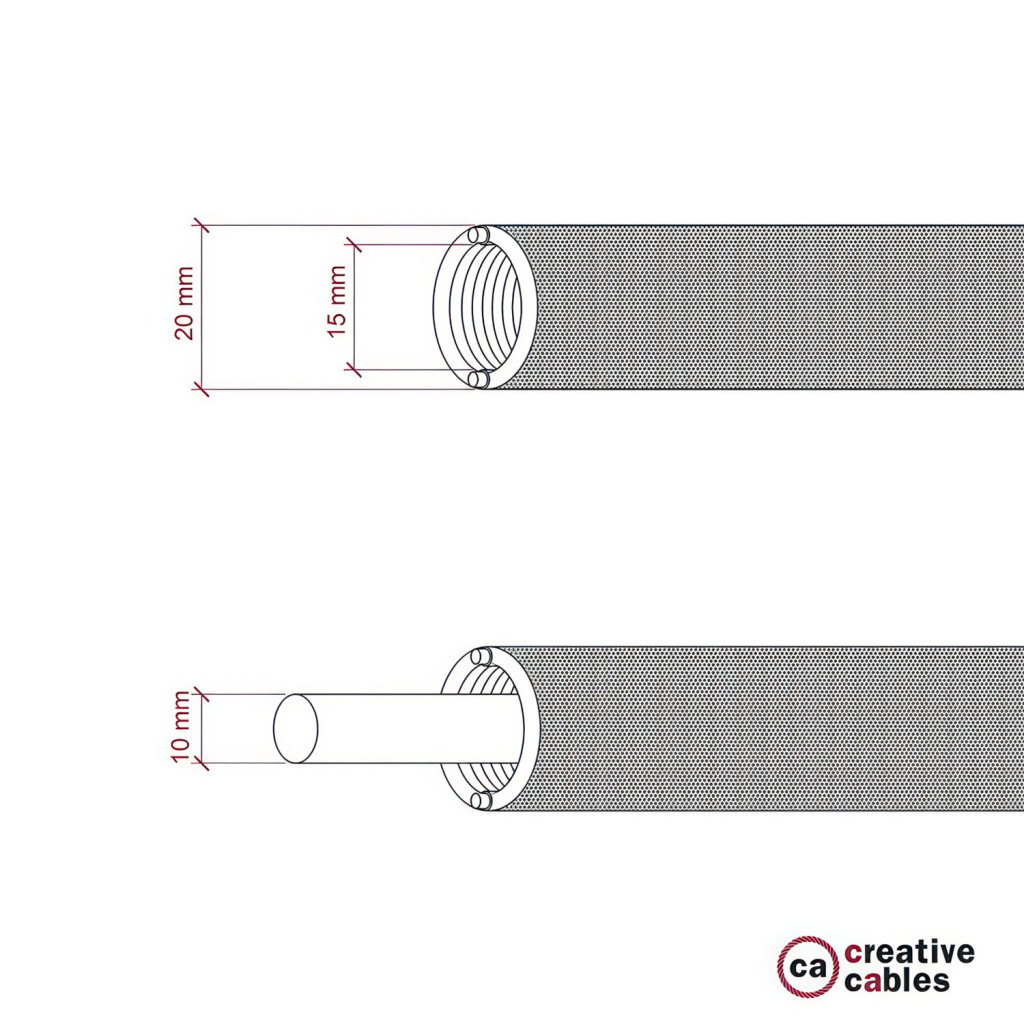

Diameter: 20 mm
Color: Rayon White RM01

According to the CEI 64-8 standard, in order to guarantee cable removal, the maximum useful cross-section of the cables inside the Creative-Tube can be 10 mm for a tube up to 10 meters long. Up to 20 meters, the maximum thickness will be 9 mm.

Due to the shape of Creative-Tube, after installation, you will need to cut off the metal strands protruding from the edge of the tube before installing accessories or connecting to the junction box.

Available to order

8.59 €

Unit price: 8.59 €/méter

Points earned after purchase: 0.26 €

Quantity discount

2+ piece/s

-1 %

8.51 €/piece/s

3+ piece/s

-2 %

8.42 €/piece/s

4+ piece/s

-3 %

8.33 €/piece/s

5+ piece/s

-4 %

8.25 €/piece/s

6+ piece/s

-5 %

8.16 €/piece/s

Manufacturer's stock

265 piece/s

1-week stock arrival

Data

Manufacturer

Creative-Cables

Manufacturer product number

NG20RM01

Finish

white

Availability

Within 2-4 days

Material / Finish

fabric

Number of Conductors

two-core wire

Item number

CREATIVECABLES-NG20RM01
