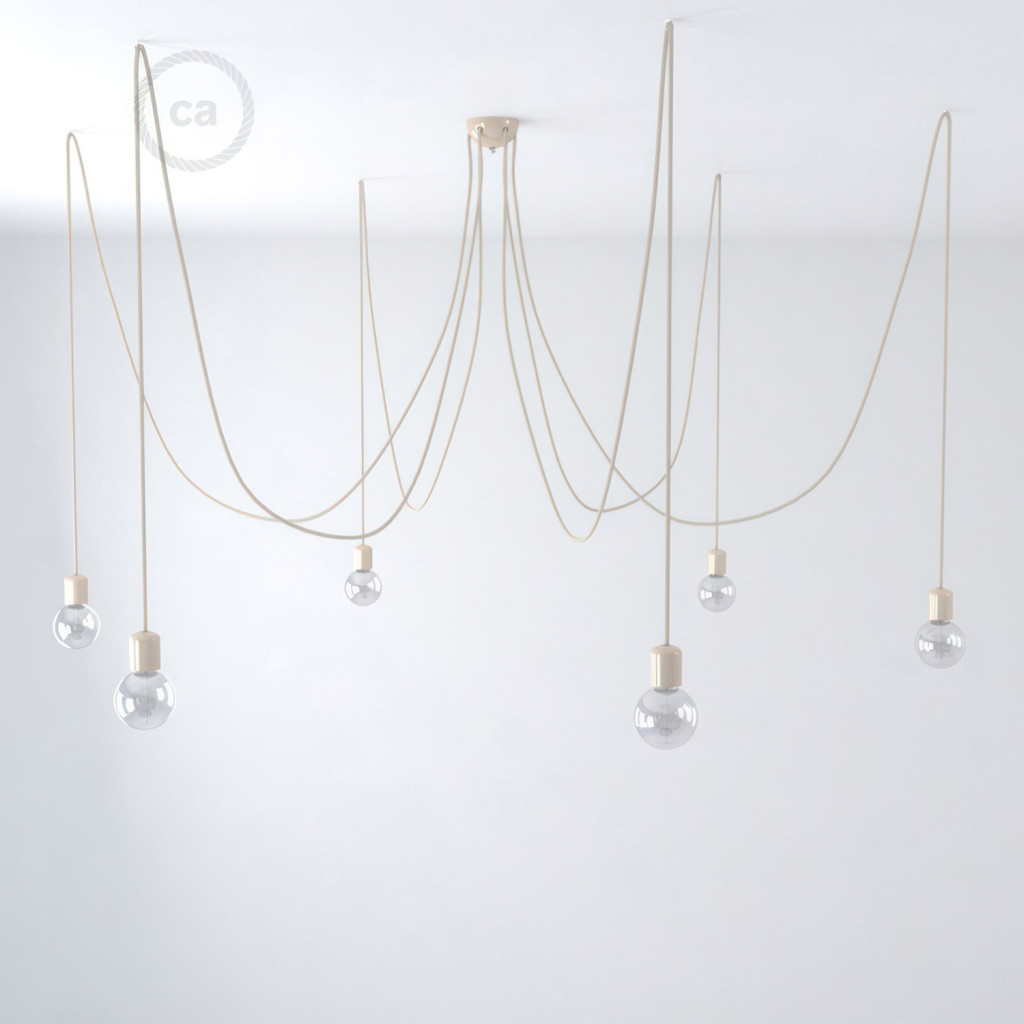

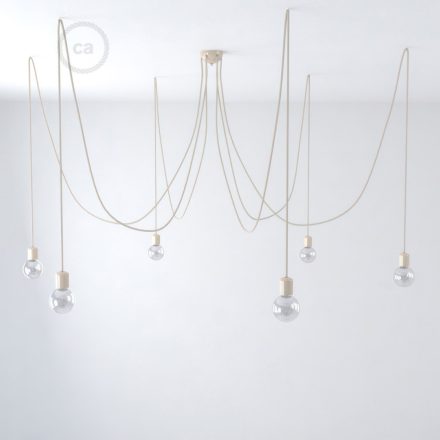

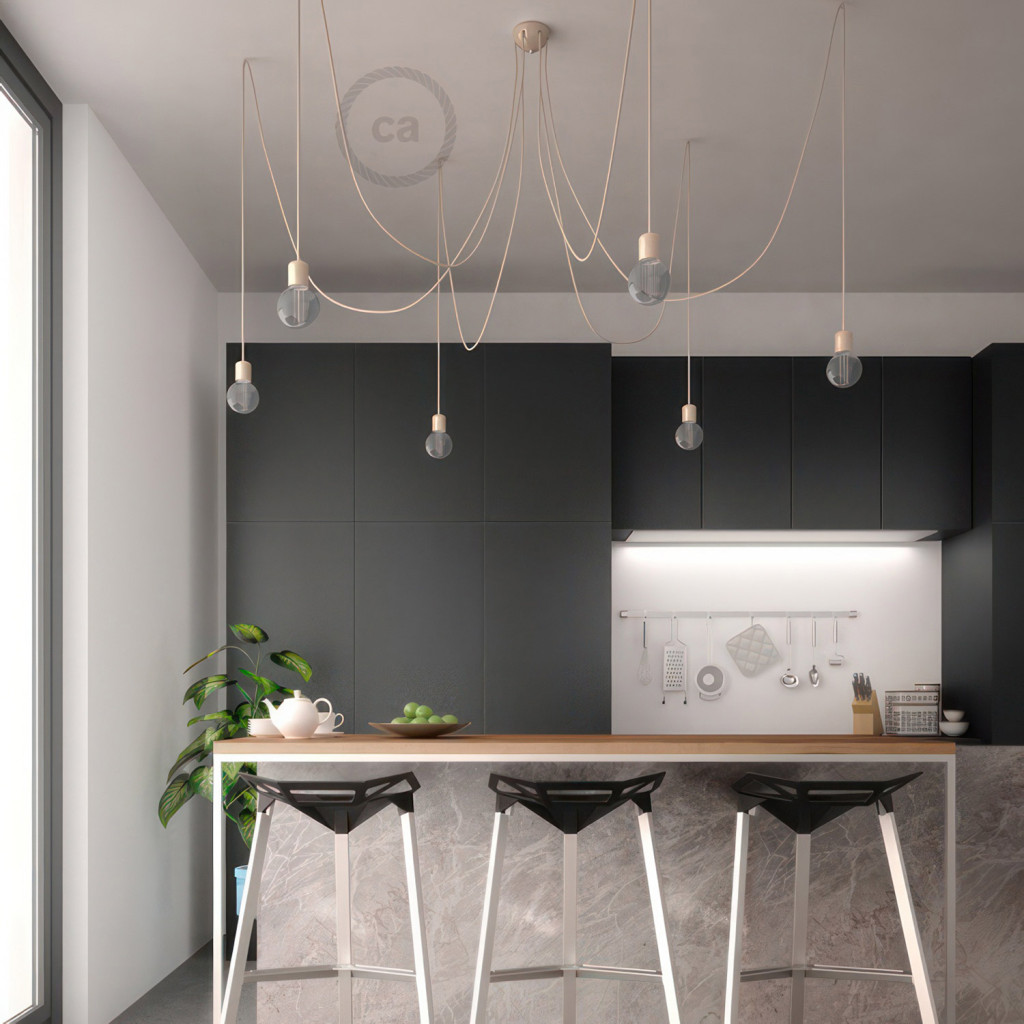

The Spider Ceramic 6-wall suspension includes the following:

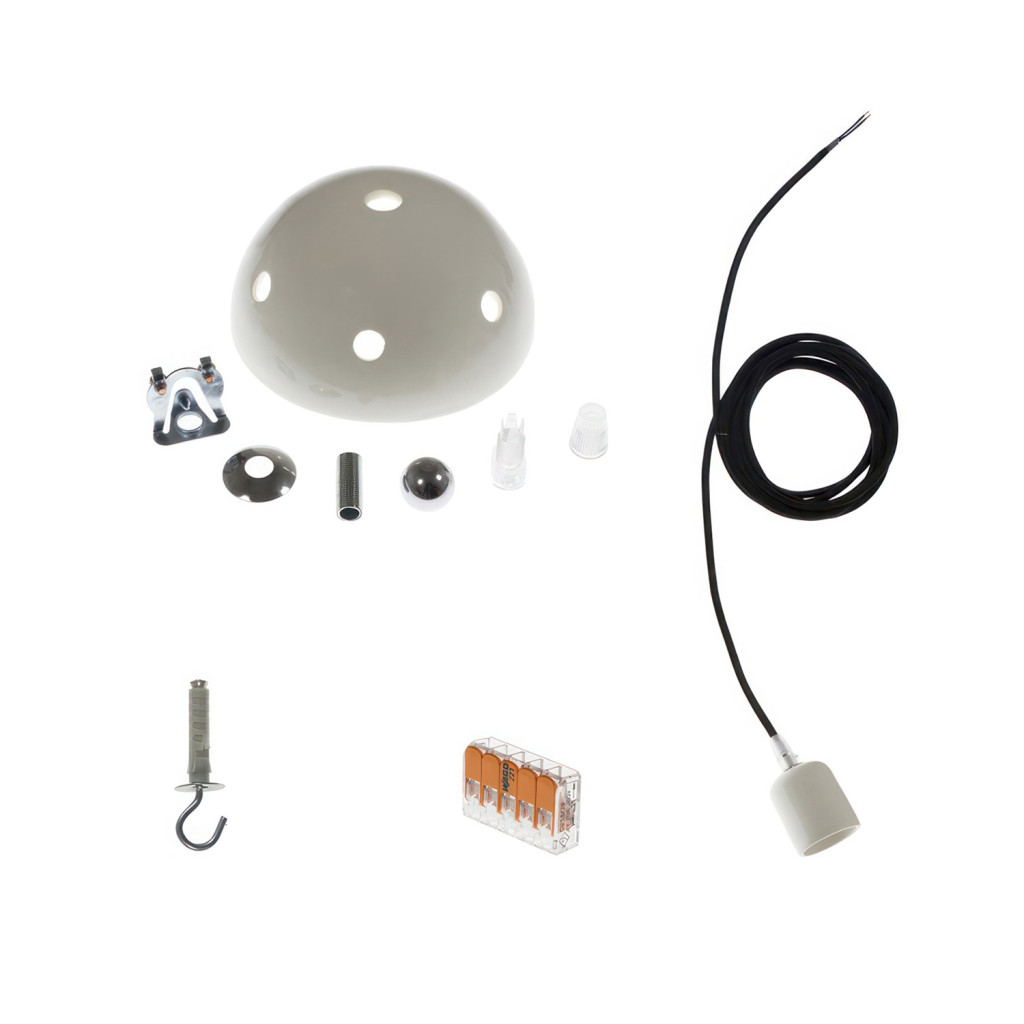

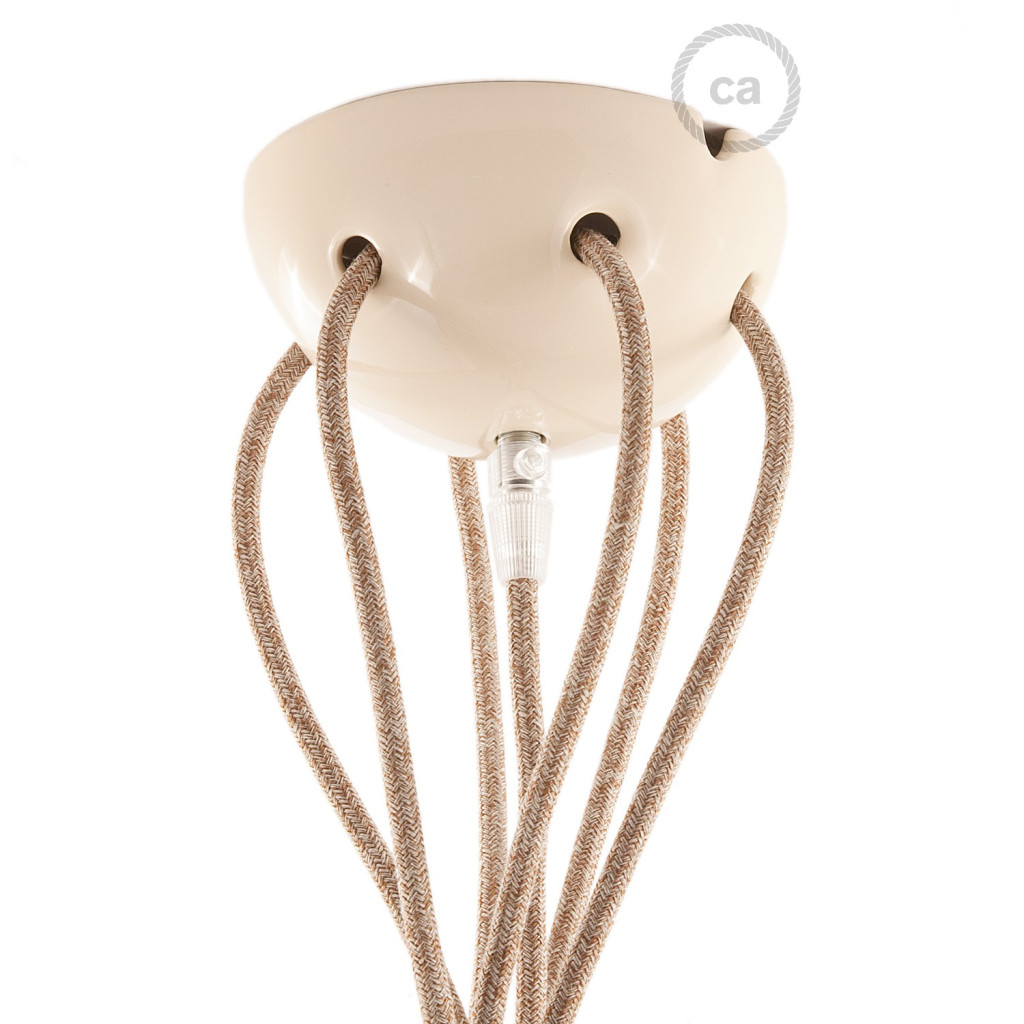

- Ceramic ceiling rose Ø 120 mm, with ceiling fixing system, 1 threaded tube, 1 complete transparent cable clamp. 1 threaded ceiling hook, 1 chrome-plated spherical end piece, which can be used if the central hole is not used.
- 6 E27 sockets made of thermoplastic with ENEC-IMQ certification, with ceramic caps in the selected design. Max. 105 W per socket.

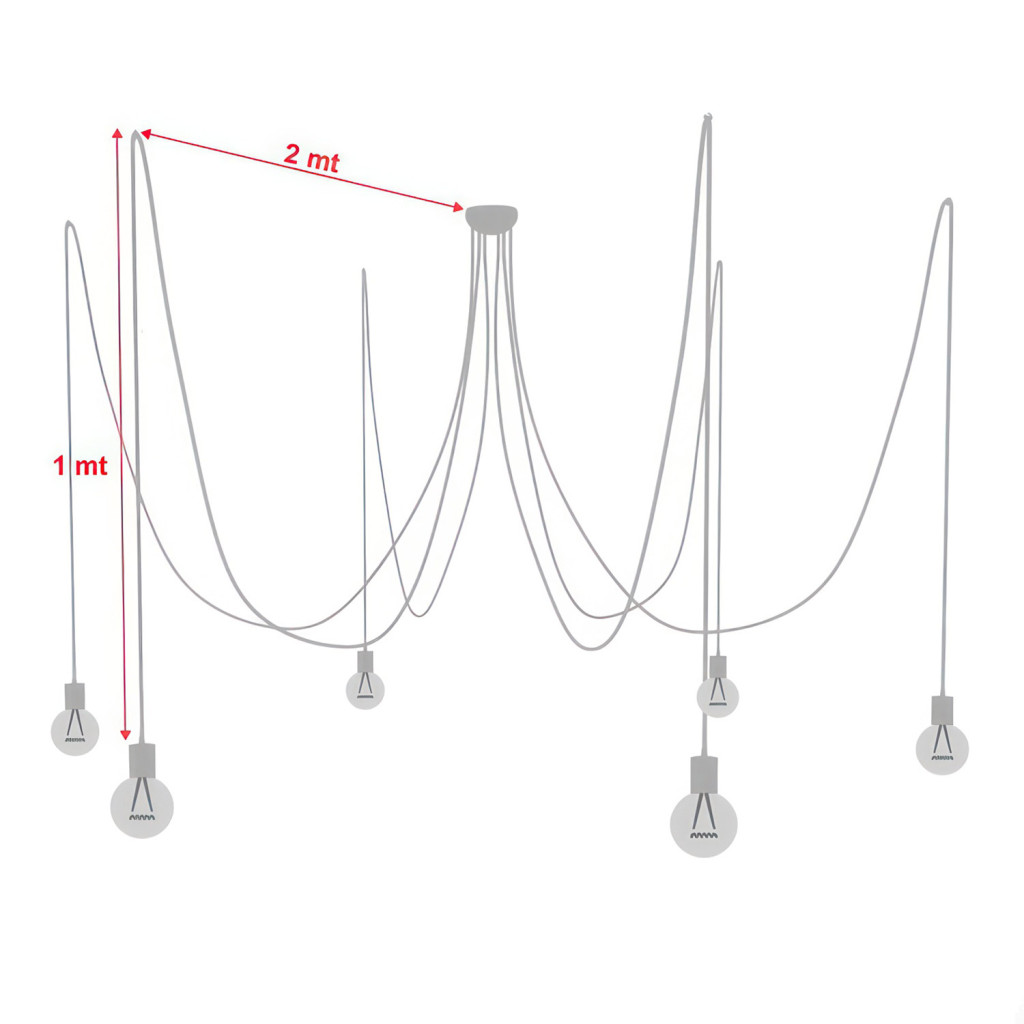

- 6 H03VVF 2x0.75 cables, IMQ-HAR certified, each 4 m long.
- 4 WAGO connectors with 5 inputs, according to EN 60998. Nominal cross-section: 2 x 0.2-2.5 mm² for rigid or flexible cables. Nominal voltage: 450 V. Nominal current: 24 A. Stripping length: 9 mm (+1 mm).
- 6 hook dowels for attaching the cable to the ceiling.

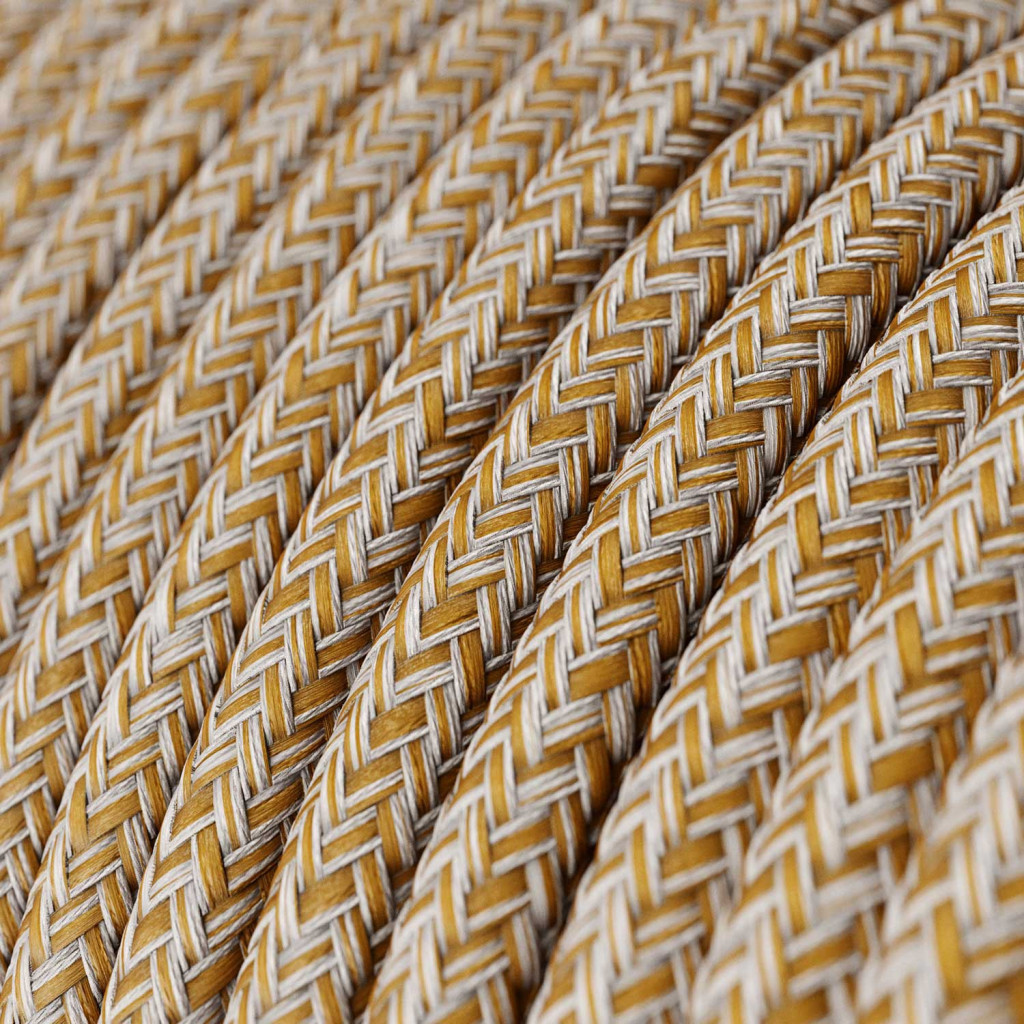

- Cable/surface combinations: RM01/white, RS82/cream, RM10/yellow, RM18/green, RM07/purple, RM09/red, RM04/black.

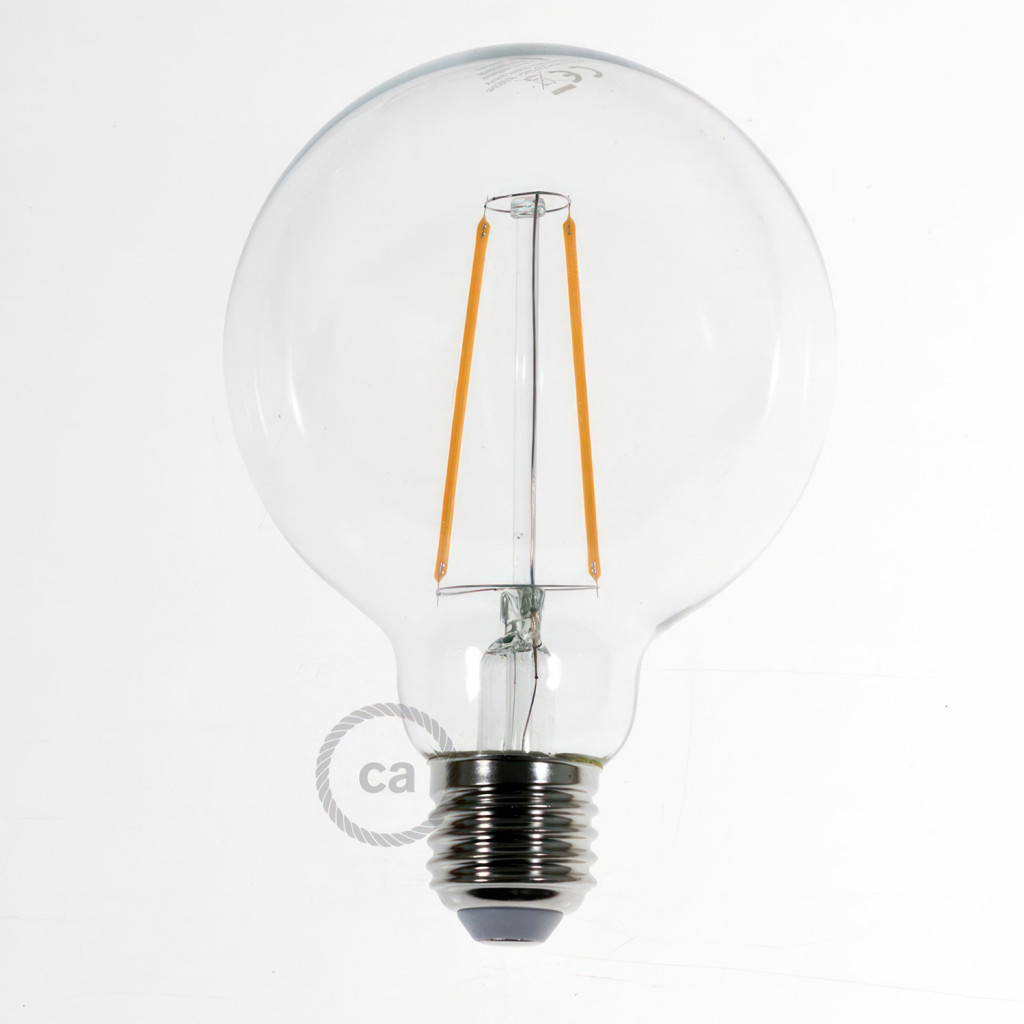

Bulb [BB-E04]: LED, transparent, G95, 4 W, 470 Lm, 2700 K, E27, E, width 95 mm, height 140 mm.
