Technical data:

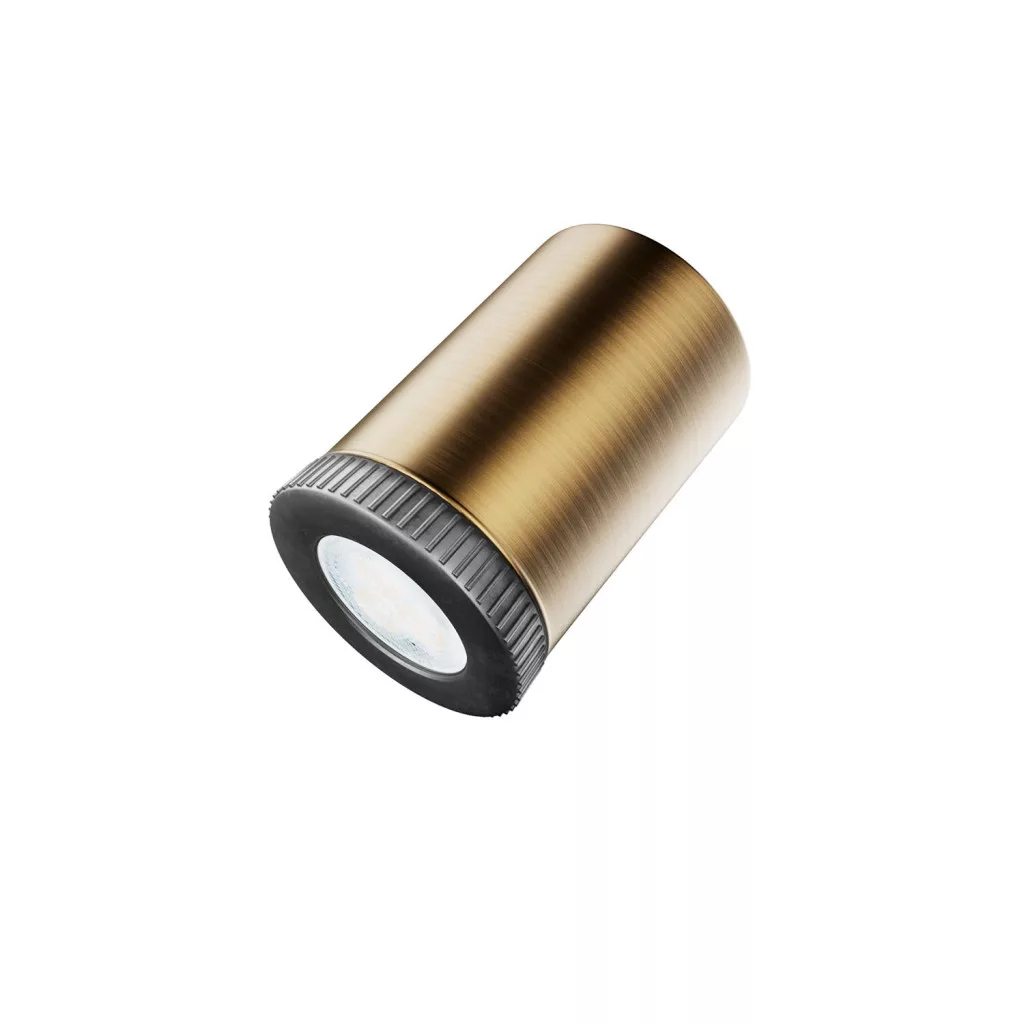

Mini Spotlight GU1d0 in various designs
Total diameter 44 mm
Total height 76 mm
Top hole: M10x1
1 GU10 lamp socket with push-pull connectors
Nominal voltage: 250 V
Nominal current: 2 kV
Crimp connectors for 0.5 mm²:0.75 mm² cables
Certificazioni: EN60838-1:2017+A1
Mini GU10 LED bulb:
Connection: Mini GU10 (MR11)
Voltage: 110-240
Energy class: F
Light color: 2700 K
Power: 3.2 W
Lumen output: 260 Lm
Dimensions: Diameter 34.5 mm; Height 46 mm
Dimmable: NO

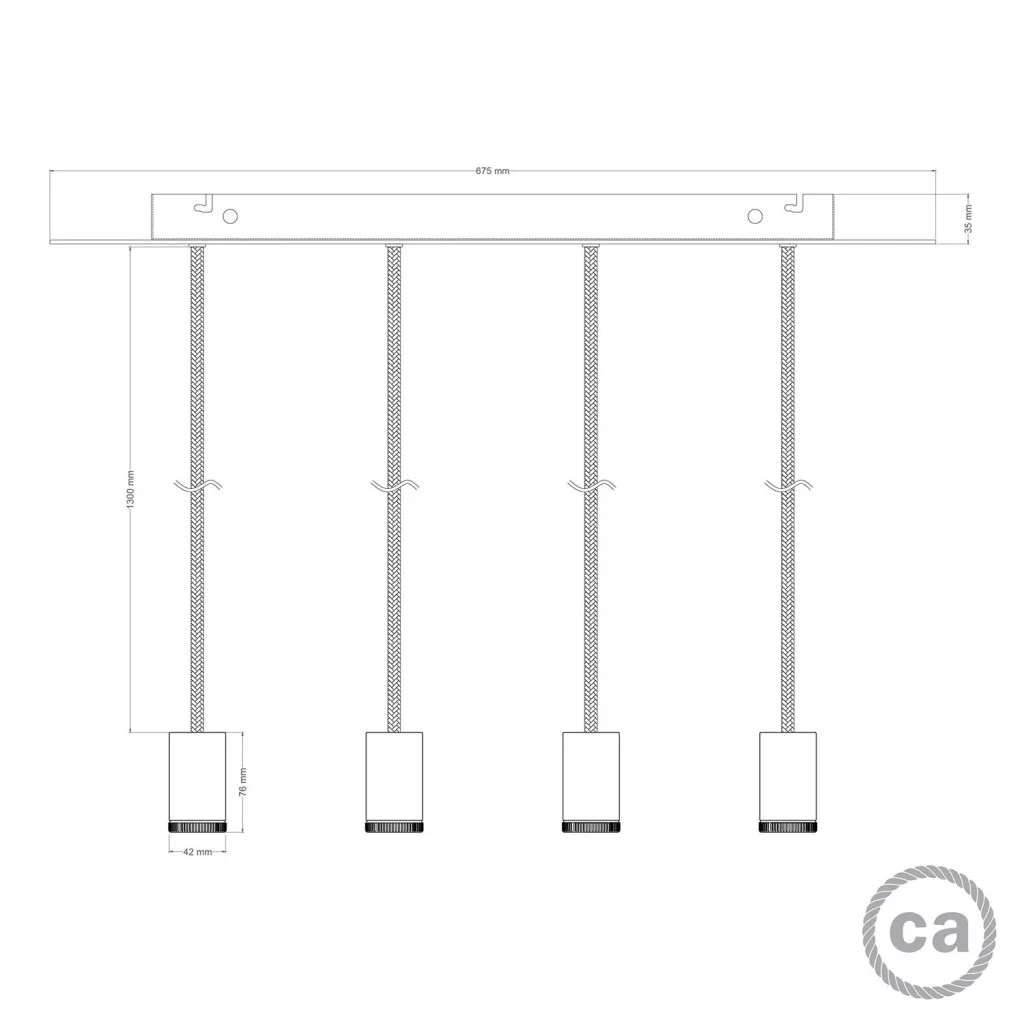

Rose for Rose-One rectangular:
Width: 520 mm
Length: 120 mm
Height: 35 mm
Material: metal
Mounting brackets
6 plugs and 6 rubber ties included for the side holes
Rectangular Rose-One panel
Material: Dibond
Width: 675 mm
Length: 225 mm
Hole diameter: 10 mm
Thickness: 3 mm
Transparent plastic cable ties included (1 pc/hole)

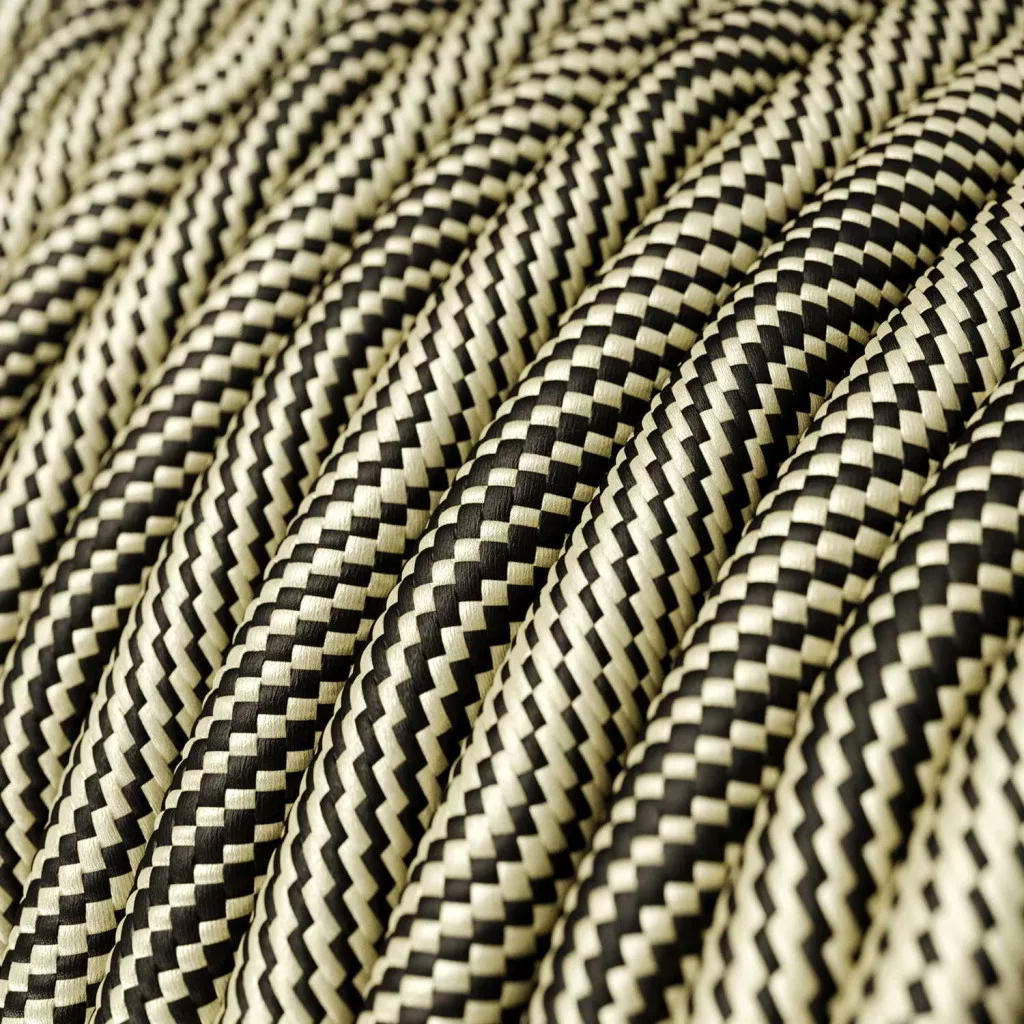

5.2 m 2x0.75
